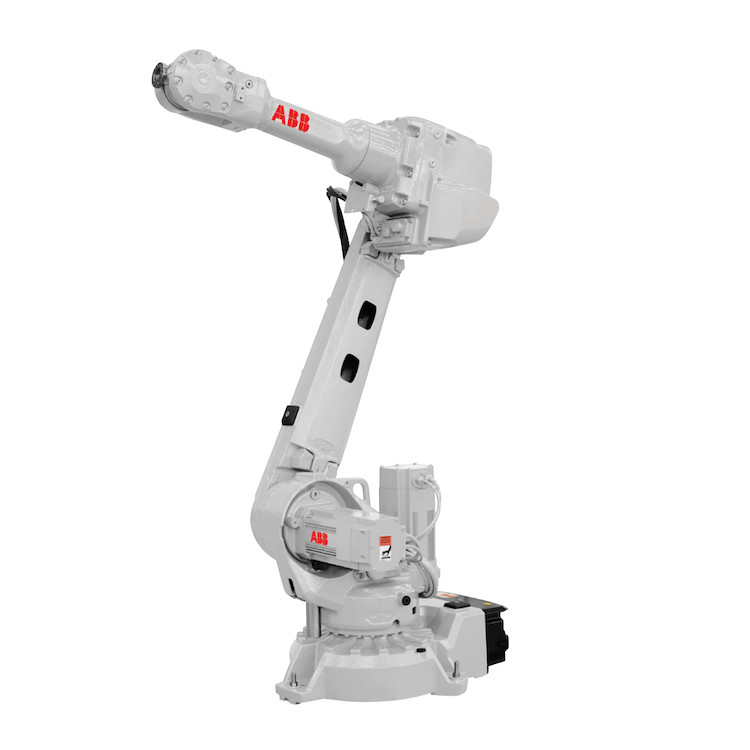

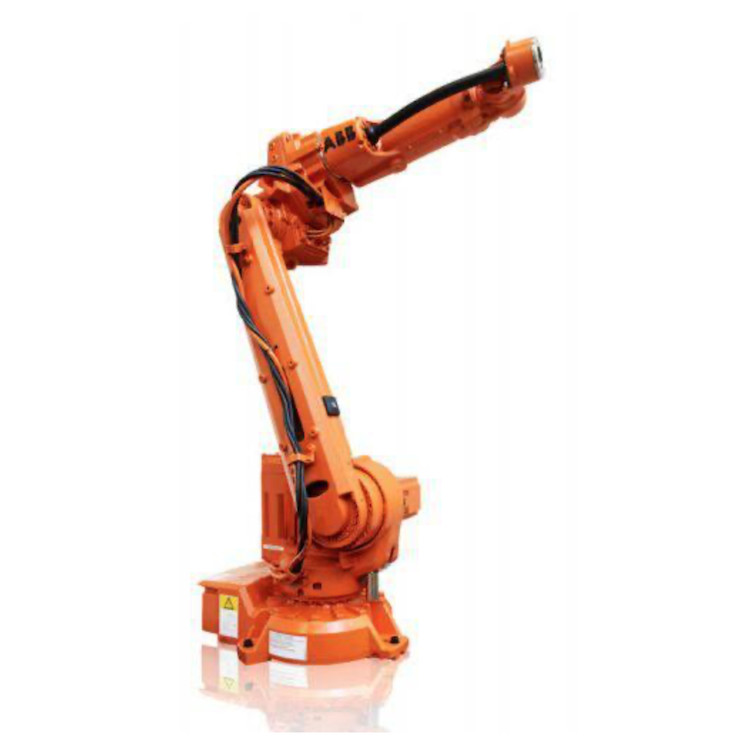

ABB IRB2600 6 Axis Industrial Robot Arm Automatic Welding Robot

Brand Name : ABB

Model Number : IRB 2600-12/1.65

Place of Origin : China

MOQ : 1 set

Payment Terms : L/C, T/T

Supply Ability : 50 pieces per month

Delivery Time : 30-60 work days

Packaging Details : ONE ABB large industrial total station robotic 6 axis IRB2600-12/1.65 material handling machine packing with fumigation wooden frame, Total WG:450KG(>VG)

Function : Automatic Welding, Assembly and packing

Protection : Standard IP67

Position repeatability : 0.04mm

Path Repeatability : 0.14mm

Supply voltage : 200-600V,50/60 Hz

Energy consumption : 3.4kw

Robot base : 676x511mm

Robot height : 1382mm

Relative humidity : Max.95%

Emission : EMC/EMI shielded

Max payload : 12kg

Max reach : 1650mm

Robot weight : 272kg

Contact Now

ABB IRB 2600 6 Axis Industrial Robot Arm Automatic Welding Robot

ABB IRB2600 6 Axis Industrial Robot Arm Automatic Welding Robot

Specification

Robot version	Reach(m)		Handing capacity(kg)	Wrist torque(Nm)
				Axis 4&5		Axis 6
IRB 2600-20/1.65	1.65		20	36.3		16.7
IRB 2600-12/1.65	1.65		12	21.8		10
IRB 2600-12/1.85	1.85		12	21.8		10
Number of axes	6+3external(up to 36 withMultiMove)
Protection	Standard IP67;optional
Mounting	Floor,wall,shelf,tilted,inverted
Controller	IRC5 Single Cabinet
Performance(according to ISO 9283)
		Position repeatability			Path repeatability
IRB 2600-20/1.65		0.04mm			0.13mm
IRB 2600-12/1.65		0.04mm			0.14mm
IRB 2600-12/1.85		0.04mm			0.16mm

Technical information

Electrical Connections
Supply voltage	200-600V,50/60 Hz
Energy consumption	3.4kw
Physical
Robot base	676x511mm
Robot height
IRB 2600-20/1.65	1382mm
IRB 2600-12/1.65	1382mm
IRB 2600-12/1.85	1582mm
Robot weight
IRB 2600-20/1.65	272kg
IRB 2600-12/1.65	272kg
IRB 2600-12/1.85	284kg
Environment
Ambinet temperature for mechanical unit
During operation	+5°C(41°F)up to +50°C(122°F)
During transportation and storage	-25°C(13°F)up to +55°C(131°F)
During short periods(max.24h)	up to +70°C(158°F)
Relative humidity	Max.95％
Noise level	Max.69dB(A) IRB 2600-12/1.85 Max.72dB(A) IRB 2600-20/1.65；IRB 2600-12/1.65
Safety	Double circuits with supervision, emergency stops and safety functions 3-positions enable device
Emission	EMC/EMI shielded
Options	Foundry Plus 2
